Direct Gas-Fired TUNNEL OVEN OG/OS



SPEC

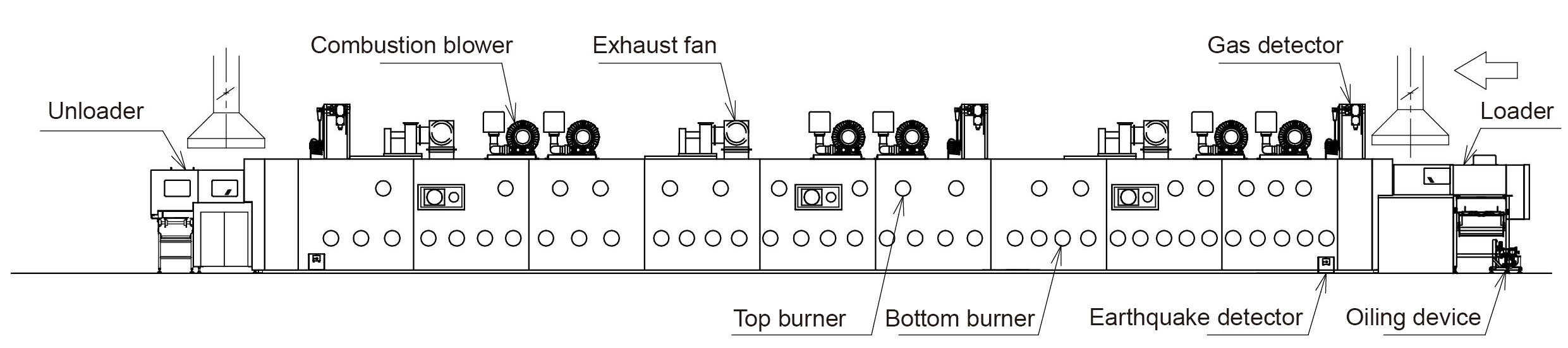

White Bread Oven OG

Specification table (reference capacity)

Bread tin capacity Model Overall width Overall length Estimated gas consumption Estimated LPG consumption
3 across×
20 rows= 60 cases		 Hi 1.65×10.0 GTB 2,900mm 14,000mm 11.5 Nm3/h 5.0 Nm3/h
4 across×
30 rows = 120 cases		 Hi 2.2×15.0 GTB 3,450mm 19,000mm 23.0 Nm3/h 10.5 Nm3/h
6 across×
50 rows = 300 cases		 Hi 3.3×25.0 GTB 4,700mm 29,000mm 57.0 Nm3/h 26.0 Nm3/h

Note) Specifications and dimensions are subject to change without prior notice.
Note) Transformer might be needed depending upon the specifications.
         Bread tin size (520 W x 450 L); (3 rows cases) are assumed.

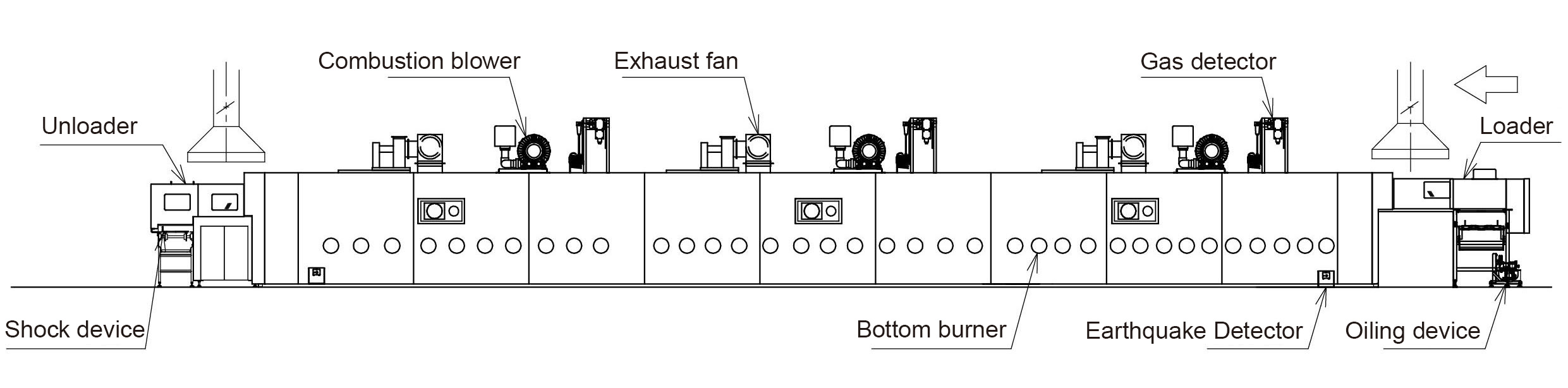

Sweet Bread Oven OS

Specification table (reference capacity)

Capacity for 6-slot baking pan Model Overall width Overall length Estimated gas consumption Estimated LPG consumption
4 across×
20 rows =80 pans		 Hi 1.65×12.0 PTB 2,900mm 16,100mm 14.0 Nm3/h 6.0 Nm3/h
6 across×
30 rows =180 pans		 Hi 2.4×17.0 PTB 3,650mm 21,000mm 28.0 Nm3/h 13.0 Nm3/h
8 across×
50 rows = 400 pans		 Hi 3.15×28.0 PTB 4,550mm 32,100mm 61.0 Nm3/h 28.0 Nm3/h

Note) Specifications and dimensions are subject to change without prior notice.
Note) Transformer might be needed depending upon the specifications.
         In the case of 6-slot baking pan. (380W×530L)
